Fiber Distribution Terminal,Outdoor Cabinet,288&384 Fibers
GRANDWAY

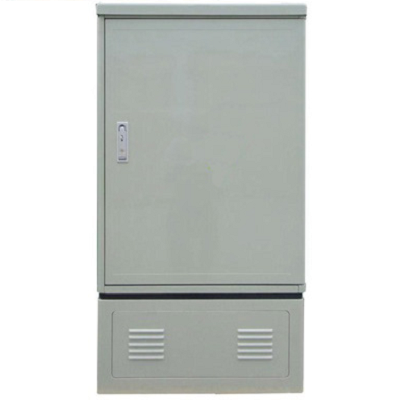

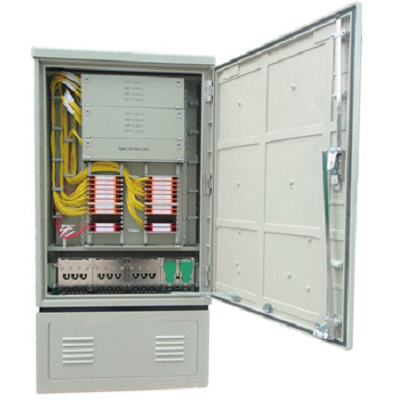

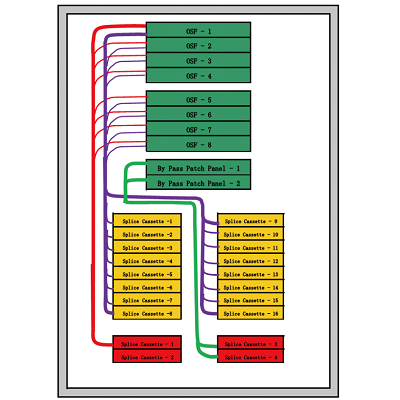

Fiber Distribution Terminal, Outdoor Cabinet is made of SMC plastic sheet material. It is one of the fiber distribution equipment in telecom system, which is used for the main cable distribution outdoor. It can perform fiber splicing and distribution function. The FDT consists of cabinet, OSF (optical splitter Fame) distribution area, Bypass area, fiber fusion area, fiber storage area and input and output fiber fixing area. There are 4 optical splitter trays in each OSF, and totally 8 splitter trays for 1*32 PLC splitter (or 2*32 splitter) .
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
● The splitter tray can be pull out for easier operation
● High density of splitter tray to save space
● Easier for patchcord jumping between different trays and for massive jumping
● The splitter section and the pigtail section are separated clearly in two sections
● Clear marking for each splice tray and pigtails
