Features

Features
Models
Parameter
Packages
Make Video

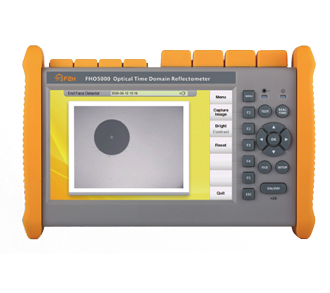

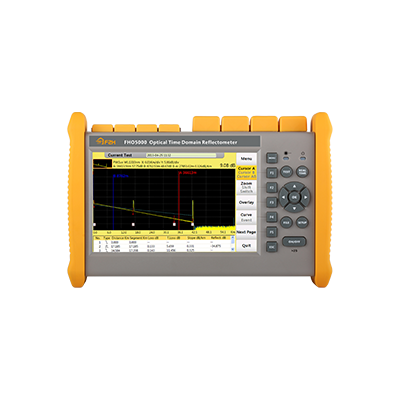

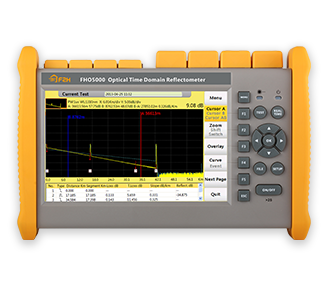

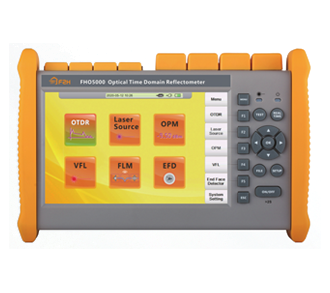

Multi Functions Test

One button test,real time test and fiber link map test

3×USB prot 6 hours test Built-in VFL/LS/OPM

16GBTest trace storage

200km Long distance test

26~45dB Multi dynamic range

Humanized structure interface design

7-inchcolor touch

1mheight anti-fall

FLM test

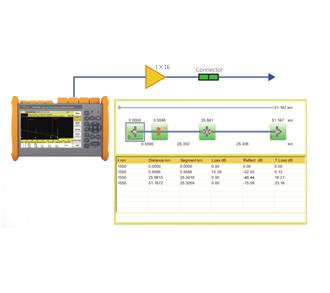

Intelligent multi pulse width analysis, viewable dis-play of all events of optical fiber link

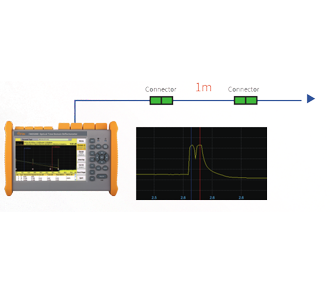

1m ultra short deadzone

Ultra short deadzone helps you identify short dis-

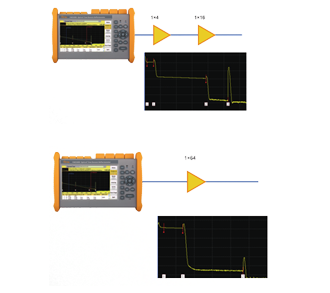

Through splitter test

Test two splitters fiber line1×4+1×16

Test one splitter fiber line

Through splitter test

Test two splitters fiber line1×4+1×16

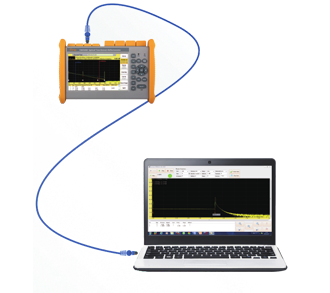

Remote control function

Remote control of FHO5000 through Ethernet port。

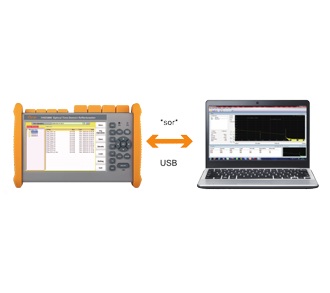

OTDR report export

Easy export, report making

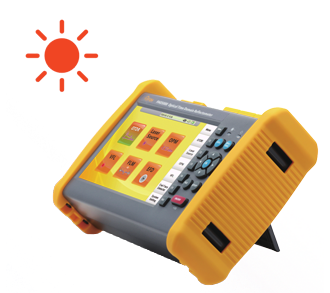

Suitable for variousworking environ-

Backlight adjustment, the screencan be seen clearly under strong

Multi Functions Test

Item

Parameter

Pulse Width	SM	3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs
Pulse Width	MM	850nm：3ns，5ns，10ns，20ns，50ns，100ns，200ns，500ns，1us 1300nm：3ns，5ns，10ns，20ns，50ns，100ns，200ns，500ns，1us，2us
Test Range	SM	100m、500m、2km、5km、10km、20km、40km、80km、120km、160km、240km
Test Range	MM	850nm：500m，2km，5km，10km 1300nm：500m，2km，5km，10km，20km，40km，80km

Sampling resolution	Min 0.05m
Linearity	128,000
Sampling point	≤0.05dB/dB
Loss threshold	0.01dB
Loss resolution	0.001dB
Distance resolution	0.01m
VFL	±(1m+Test distance×3×10 -5 +Sampling resolution) （excluding IOR uncertainty
Distance accuracy	≥ 160000 curves
Data storage	10mW，CW/2Hz
Interface	RJ-45，3*USB（Type A×2，Type B×1）
Display	7 inch TFT-LCD（Touch screen is optional）
Battery	7.4V/4.4Ah lithium battery（with air tracffic certification），6 hours continuous working
Temp	Work Temp：-10℃~+50℃；Storage Temp：-20℃~+70℃
Humidity	≤ 95%（no-condensation）
Size/Weight	253×168×73.5mm / 1.5kg（with battery）
Accessories	Wrist strap、Charging adapter、 Battery、USB cable、Quick guide、Carrying bag
Optional	SC/LC adapter、OPM、LS、Touch screen、WiFi、Fiber microscope

Parameter

Model

Wavelength

Dynamic range

Deadzone

FHO5000-D26	1310/1550nm	26/24dB	0.8/4m
FHO5000-D35		35/33dB	0.8/4m
FHO5000-D40		40/38dB	1/4m
FHO5000-D43		43/41dB	1/5m
FHO5000-D45		45/43dB	0.8/3.6m
FHO5000-TP35	1310/1490/1550nm	35/33/33dB	0.8/4m
FHO5000-T40F	1310/1550/1625nm	40/38/38dB	1/4m
FHO5000-T43F		43/41/41dB	1/5m
FHO5000-T45F		45/43/43dB	0.8/3.6m
FHO5000-M21	850/1300nm	19/21dB	1.2/8m
FHO5000-MD21	850/1300nm	19/21dB	1.2/8m
FHO5000-MD21	1310/1550nm	35/33dB	0.8/4m
FHO5000-MD22	850/1300nm	19/21dB	1.2/8m
FHO5000-MD22	1310/1550nm	40/38dB	1/4m

Packing list

OTDR main unit	lithium battery	Carrying bag
Wrist strap	Charging adapter	Charging cord
USB Cable	Calibration Report	Quick Guide

Make video

Here's the title of the video

Here is an introduction to the videoHere is an introduction to the videoHere is an introduction to the videoHere is an introduction to the videoHere is an introduction to the videoHere is an introduction to the video

Here's the title of the video

Functions

Multi Functions Test

Multi Functions Test

Parameter

Packing list

Make video
