Fiber breakpoint / length / loss testingFiber breakpoint / length / loss testingFiber breakpoint / length / loss testingFiber breakpoint / length

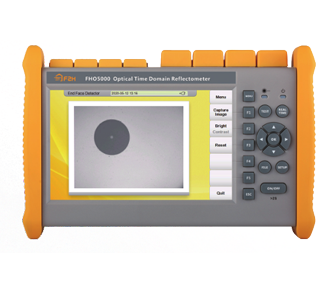

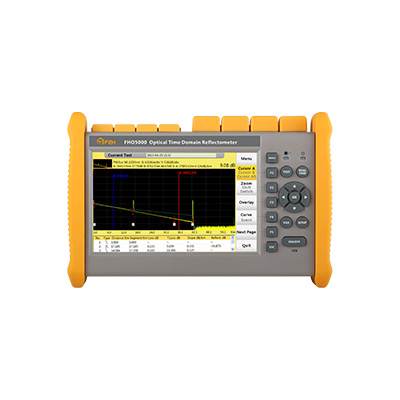

7inch TFT-LCD
Screen size(touch screen optional)
24~45dB
Dynamic range
3.6~8m
Attenuation dead zone
0.8~1.2
Event dead zone
80000
Trace storage
80000
Trace storage
PRODUCT CATALOG
SOFTWARE
DOCUMENTS
CERTIFICATE

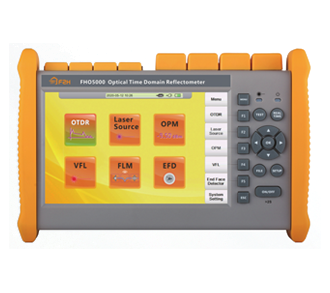

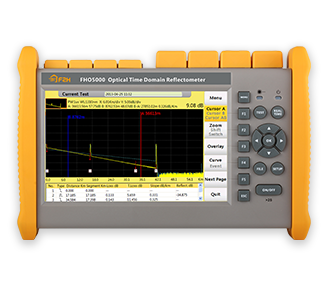

One button test,real time test and fiber link map test
16GBTest trace storage
200km Long distance test
26~45dB Multi dynamic range

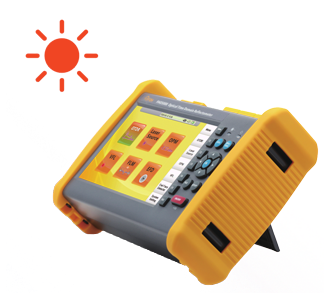

7-inchcolor touch
1mheight anti-fall
Intelligent multi pulse width analysis, viewable dis-play of all events of optical fiber link

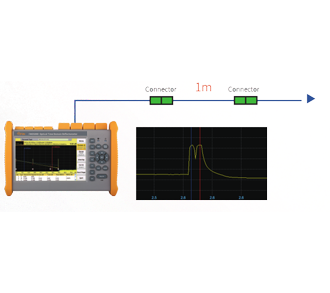

Ultra short deadzone helps you identify short dis-

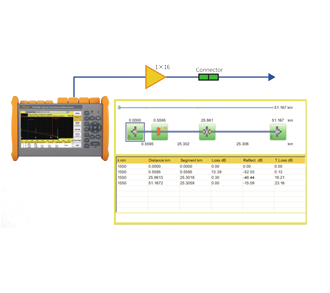

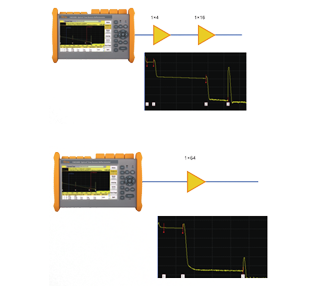

Test two splitters fiber line1×4+1×16
Test one splitter fiber line
Test two splitters fiber line1×4+1×16

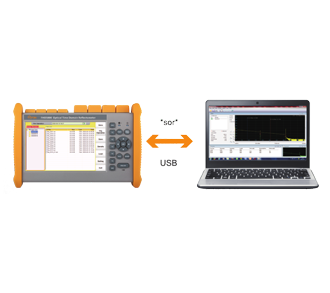

Remote control of FHO5000 through Ethernet port。

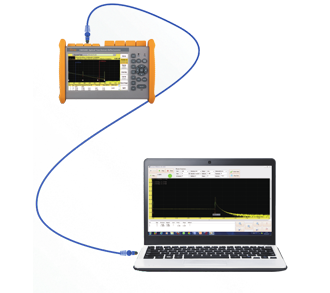

Easy export, report making
Backlight adjustment, the screencan be seen clearly under strong
| Item | Parameter |
| Pulse Width | SM | 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs |
| MM | 850nm：3ns，5ns，10ns，20ns，50ns，100ns，200ns，500ns，1us 1300nm：3ns，5ns，10ns，20ns，50ns，100ns，200ns，500ns，1us，2us | |
| Test Range | SM | 100m、500m、2km、5km、10km、20km、40km、80km、120km、160km、240km |
| MM | 850nm：500m，2km，5km，10km 1300nm：500m，2km，5km，10km，20km，40km，80km |
| Sampling resolution | Min 0.05m |
| Linearity | 128,000 |
| Sampling point | ≤0.05dB/dB |
| Loss threshold | 0.01dB |
| Loss resolution | 0.001dB |
| Distance resolution | 0.01m |
| VFL | ±(1m+Test distance×3×10 -5 +Sampling resolution) （excluding IOR uncertainty |
| Distance accuracy | ≥ 160000 curves |
| Data storage | 10mW，CW/2Hz |
| Interface | RJ-45，3*USB（Type A×2，Type B×1） |
| Display | 7 inch TFT-LCD（Touch screen is optional） |
| Battery | 7.4V/4.4Ah lithium battery（with air tracffic certification），6 hours continuous working |
| Temp | Work Temp：-10℃~+50℃；Storage Temp：-20℃~+70℃ |
| Humidity | ≤ 95%（no-condensation） |
| Size/Weight | 253×168×73.5mm / 1.5kg（with battery） |
| Accessories | Wrist strap、Charging adapter、 Battery、USB cable、Quick guide、Carrying bag |
| Optional | SC/LC adapter、OPM、LS、Touch screen、WiFi、Fiber microscope |
| Model | Wavelength | Dynamic range | Deadzone |
| FHO5000-D26 | 1310/1550nm | 26/24dB | 0.8/4m |
| FHO5000-D35 | 35/33dB | 0.8/4m | |
| FHO5000-D40 | 40/38dB | 1/4m | |
| FHO5000-D43 | 43/41dB | 1/5m | |
| FHO5000-D45 | 45/43dB | 0.8/3.6m | |
| FHO5000-TP35 | 1310/1490/1550nm | 35/33/33dB | 0.8/4m |
| FHO5000-T40F | 1310/1550/1625nm | 40/38/38dB | 1/4m |
| FHO5000-T43F | 43/41/41dB | 1/5m | |
| FHO5000-T45F | 45/43/43dB | 0.8/3.6m | |
| FHO5000-M21 | 850/1300nm | 19/21dB | 1.2/8m |
| FHO5000-MD21 | 850/1300nm | 19/21dB | 1.2/8m |
| 1310/1550nm | 35/33dB | 0.8/4m | |
| FHO5000-MD22 | 850/1300nm | 19/21dB | 1.2/8m |
| 1310/1550nm | 40/38dB | 1/4m |

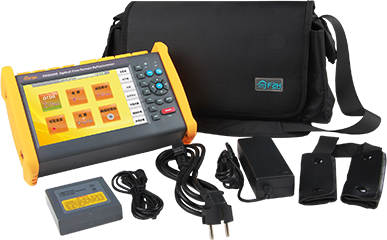

| OTDR main unit | lithium battery | Carrying bag |
| Wrist strap | Charging adapter | Charging cord |
| USB Cable | Calibration Report | Quick Guide |
