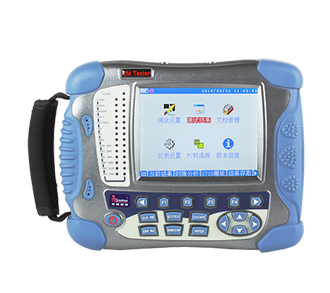

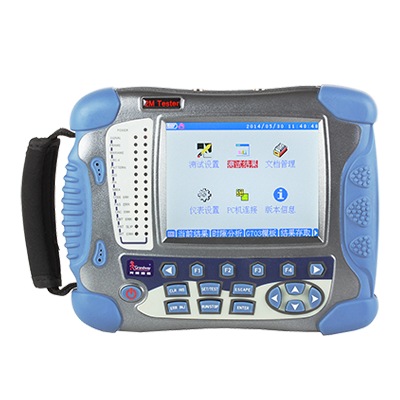

TLP-3C 2M Transmission Analyzer
TPL-3C 2M transmission analyzer is a multi-functional and full-featured digital tranmission system test device, design for the installation test, engineering check and acceptance, daily maintenance of digital networks, mainly performing channel test, alarm analysis, fault finding and signaling analysis. In addition, this instrument further provides various protocol converters with one-way and bi-directional bit error test function.

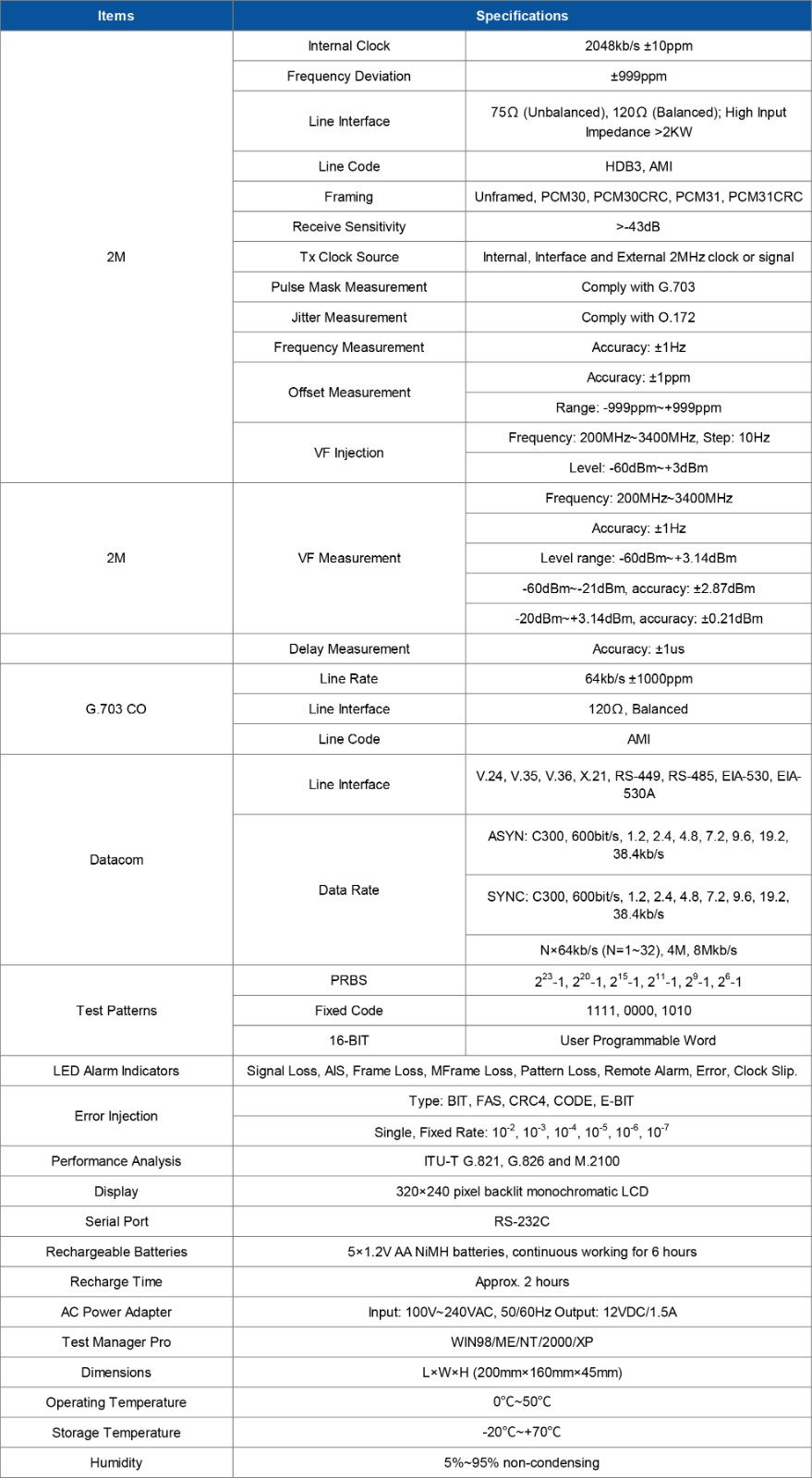

2048kb/s
Internal Clock
±999ppm
Frequency Deviation
75Ω/120Ω
Line Interface
>-43dB
Receive sensitivity
HDB3/AMI
Line Code
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
Handheld design and easy to use.
Full featured measurements to 2M and datacom.
High resolution large LCD screen with adjustable contrast.
Smart navigation mode and multi language displays.
Extensive error and alarm generation, detection and indication.
Histograms analysis of alarm and error events.
