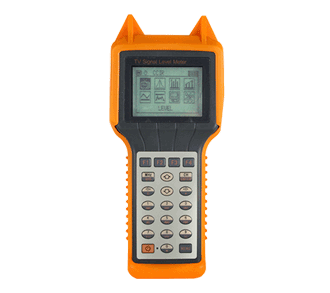

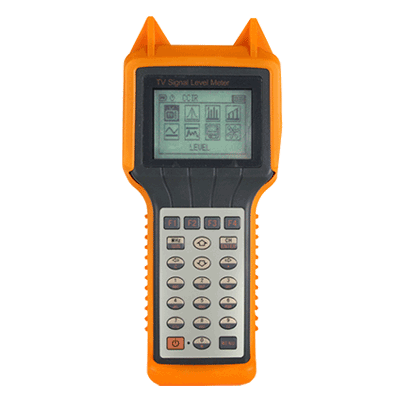

GD300DQ TV Signal Level Meter
GD300DQ TV Signal Level Meter is designed to provide features which are most widely used and favored by professionals in CATV industry at the least cost. It can be used to measure accurately the analogue channels, digital channels efficiently and effectively with high accuracy rate. Mainly it supports C/N, level, channel power measurement, voltmeter function, spectrum analysis and so on.

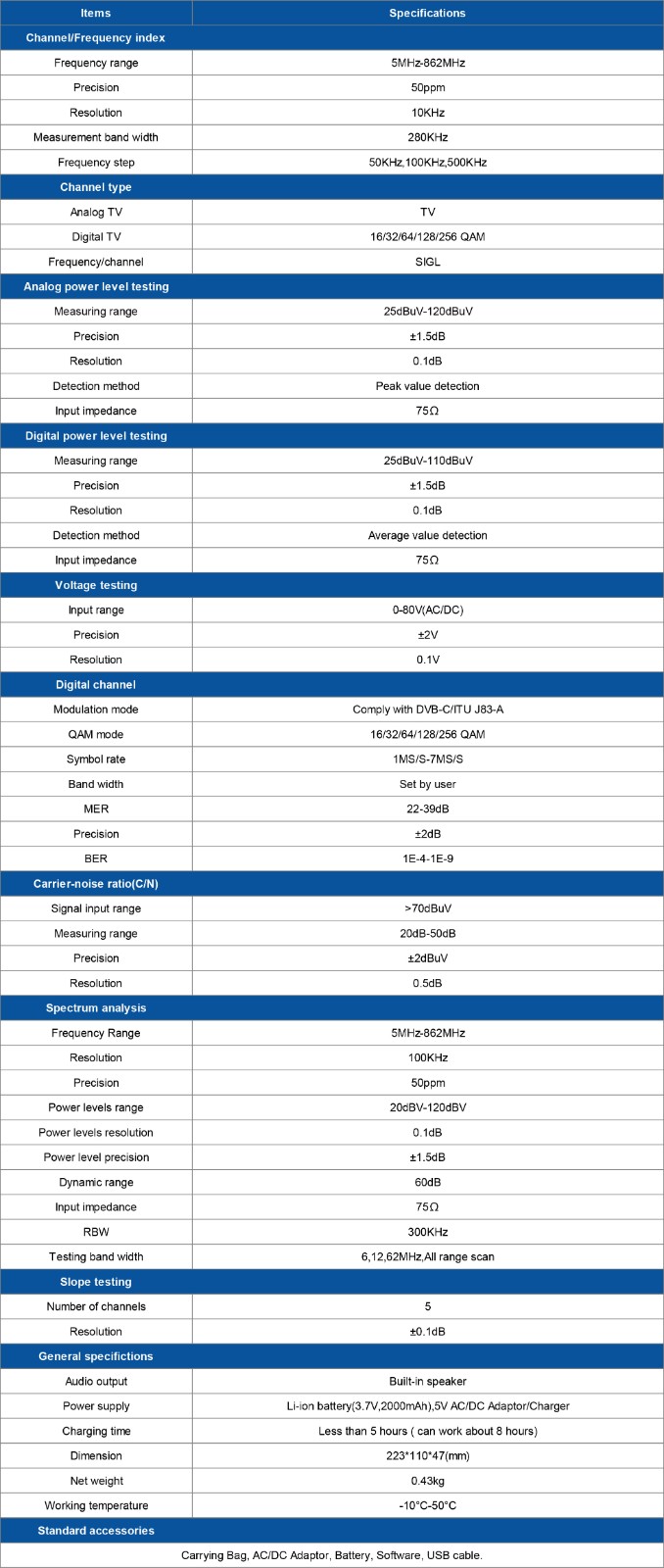

5~862MHz
Frequency range
50ppm
Precision
10kHz
Resolution
280kHz
Measurement band width
50~500kHz
Frequency step
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
Accurate QAM testing: digital average power, MER, BER.
Support multiple DVB mode: 16QAM, 32AM, 64QAM, 128QAM, 256QAM.
Single channel/Frequency simulated power levels testing.
Video and audio signal power levels testing.
V/A testing, show the frequency of video and audio.
C/N testing, Slope testing.
QAM View includes BER, MER and constellation.
