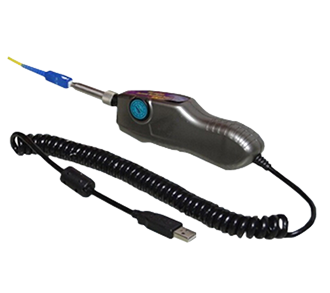

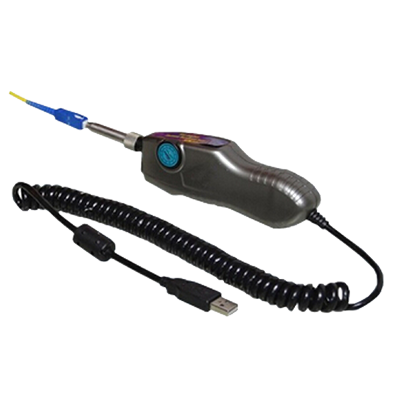

FIM-4 Fiber Microscope
FIM-4 Fiber Microscope Probe features with USB function to connect the laptop or PC directly, which includes image sensor inside the probe to have real-time inspection, no need for any additional power cord and driver. All spots, scratches, defects, etc. around end face can be easily figured out, measured and counted with pdf or excel report file generated. It’s most applied in fiber operator and research institution.

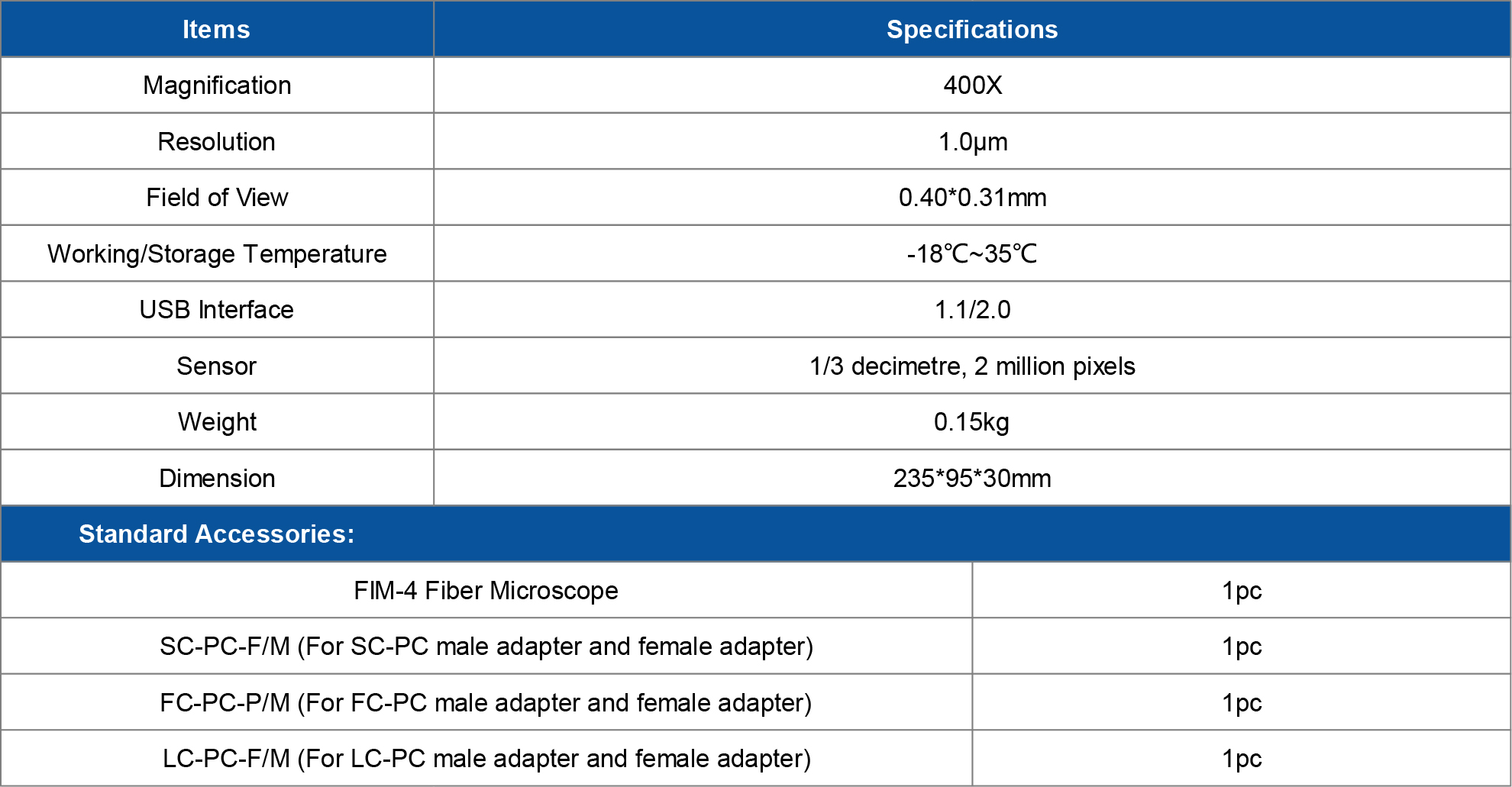

400X
Magnification
1.0um
Resolution
400×300um
Field of view
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
Zoomable lens
High alignment accuracy
400X magnification
Support printing report
One adapter suitables for male and female adapter
