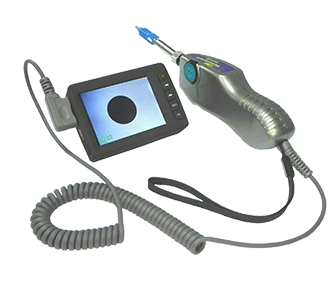

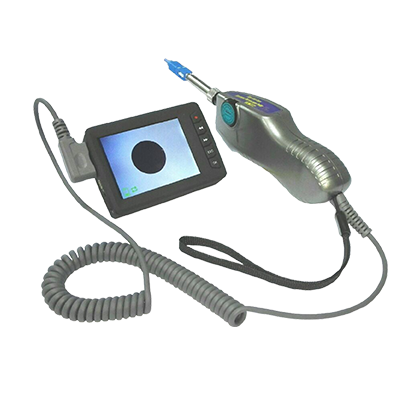

FIM-5 Fiber Microscope
FIM-5 Fiber Microscope is used to inspect end-face of fiber optic connectors. It magnifies 125um fibers 400 times, enlarging picture through a video signal to the display where the status of fiber end-face is showed clearly.
400X
Magnification
<1um
Resolution
2~6s
Focus speed
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
Unidirectional focusing, quick and accurate imaging
400X magnification, clear image
Changeable high capacity batteries
Photo, video and record tested fiber
Brightness and contrast adjustable
