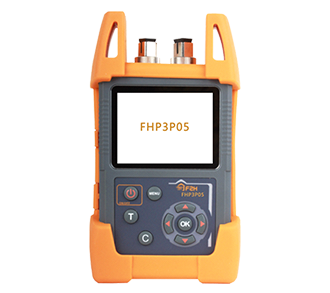

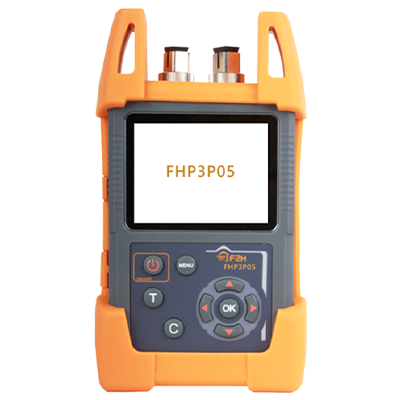

FHP3P05 10GPON Power Meter

GRANDWAY
FHP3P05 10GPON Power Meter
FHP3P05 10GPON Power Meter

Functions

10GEPON/XGPON downstream 1490nm/1577nm power value test respectively

GPON/EPON

PON Mode

-40~+10dBm

Test Range

0.01dB

Resolution

10mw

VFL

2*Ni-MH AA battery

Battery

999 datas

Data storage

FHP3P05 10GPON Power Meter

DATASHEET

FHP3P05 10GPON Power Meter

SOFTWARE

FHP3P05 10GPON Power Meter

MANUAL

FHP3P05 10GPON Power Meter

CERTIFICATE

Functions

Functions

FHP3P05 10GPON Power Meter

Applicable to 10GEPON/XGPON optical power testing

Support downstream 1490/1550/1577nm test

Support upstream 1270/1310nm test

With threshold setting and Pass/Fail function

1000 groups data storage

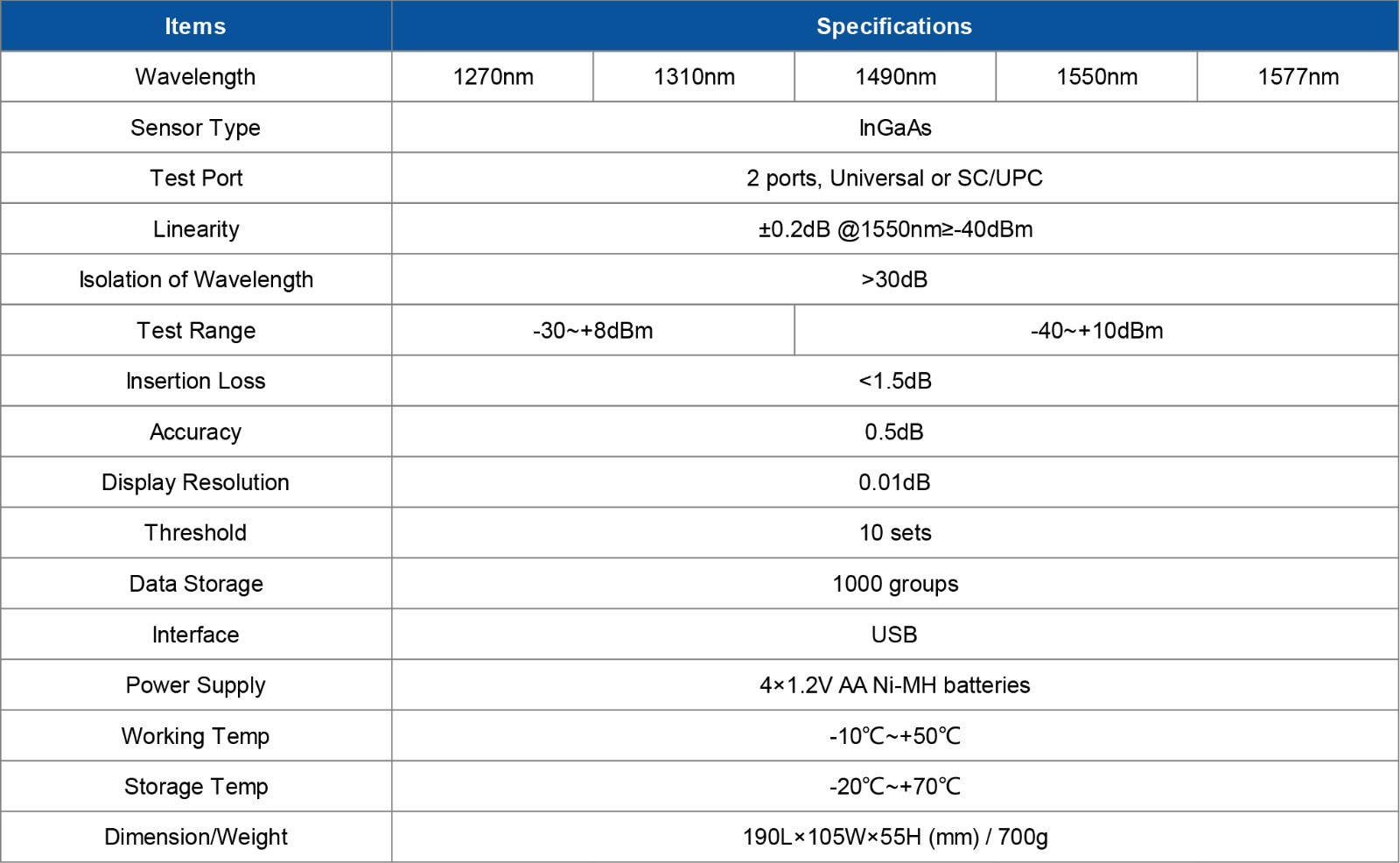

Parameter
