Stranded Loose Tube Non-metallic Strength Member Cable – GYHTY

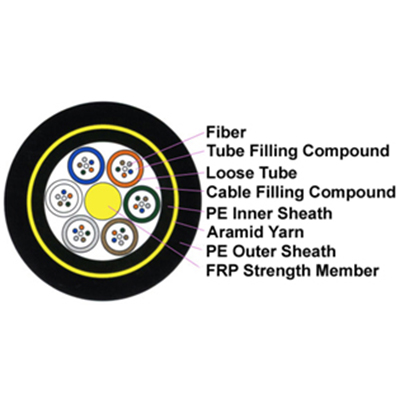

Cable Structure:The 250um bare fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. Tubes and fillers are stranded around the strength member into a compact and circular cable core. After the cable core is filled with the filling compound, it is covered with thin PE (polyethylene) inner sheath. Then a layer of aramid yarn is applied as additional strength member and the cable is completed with a PE outer sheath.
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
1.Crush resistance and flexibility
2.Good mechanical and temperature performance
3.Aramid yarn strength member ensures good performance of tensile strength
4.High strength loose tube that is hydrolysis resistant
5.Special tube filling compound ensure a critical protection of fiber
6.The following measures are taken to ensure the cable watertight:Single Fiber Reinforced Plastic as the central strength member Loose tube filling compound 100% cable core filling
