F2H-FPX-P14 Series ODF
F2H-FPX-P14 Series ODF is used as terminal equipment of fiber optic cable for optical fiber wiring, fixation, fusion and patching.

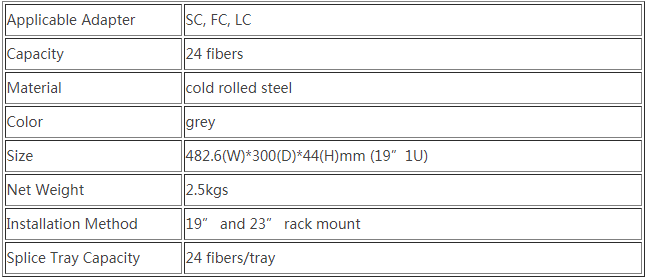

SC/FC/LC
Applicable Adapter
24 fibers
Capacity
19”/23” rack mount
Installation Method
PRODUCT CATALOG
SOFTWARE
DOCUMENTS
CERTIFICATE
Adapters are installed in angle to avoid direct laser beam
Cable gland and strength member fixation inside the ODF
Drawer type ODF
Suitable for 19” and 23” installation
Replaceable adapter panel for duplex SC, simplex SC, FC, LC, etc
Adjustable mounting depth
