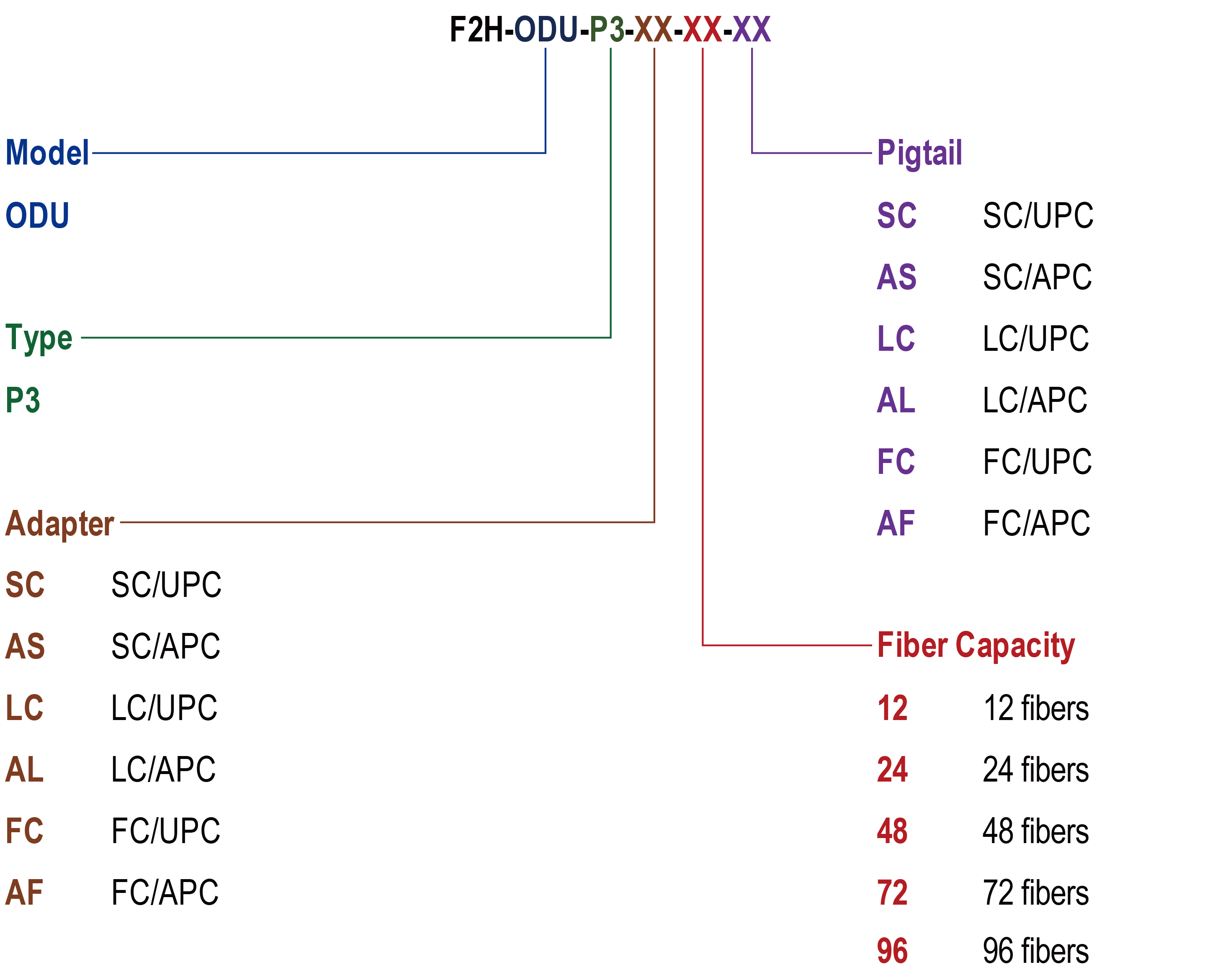

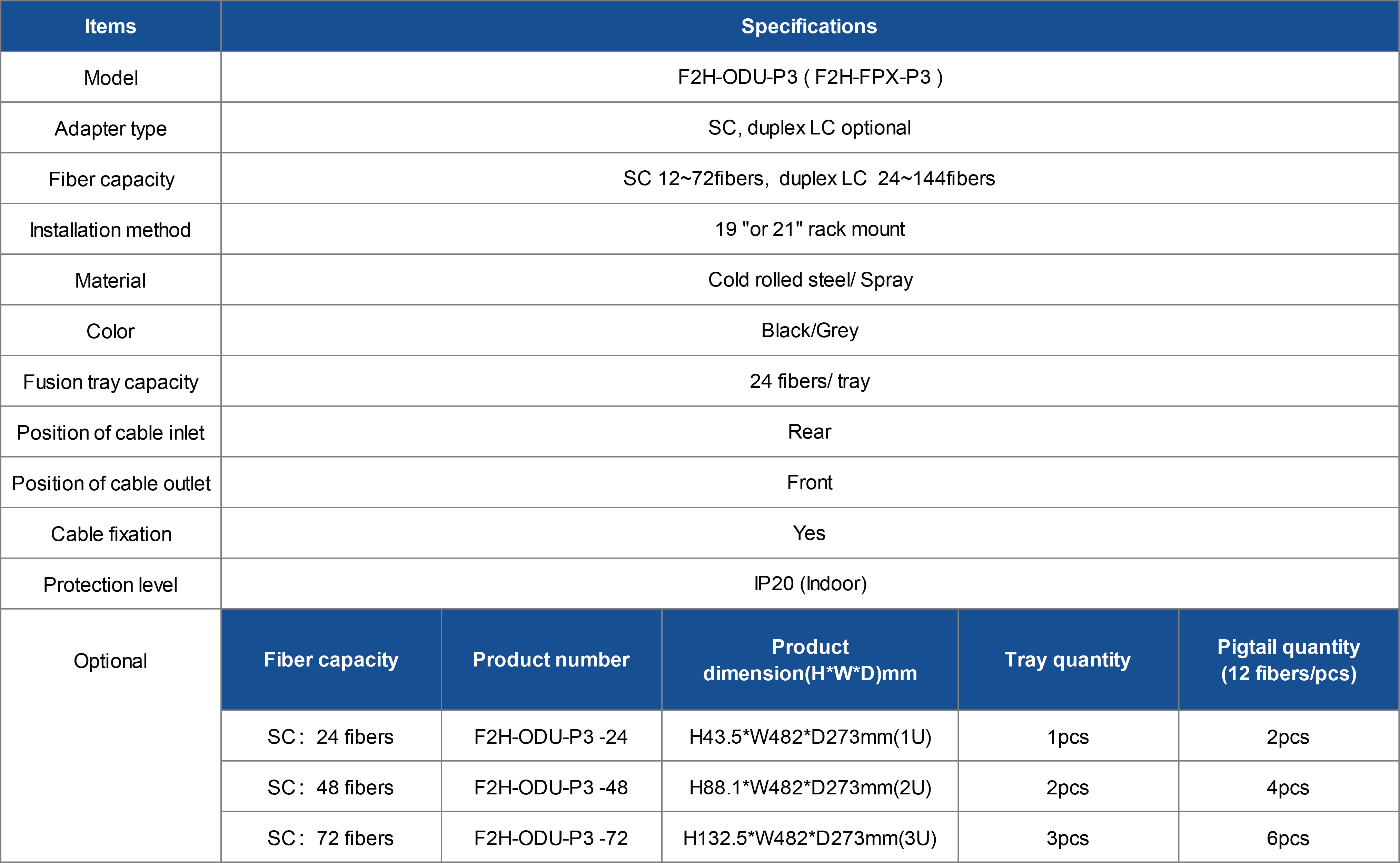

F2H-ODU-P3 Series ODF
F2H-ODU-P3 Series drawer type fiber optic panel is used as terminal equipment of fiber optic cable for optical fiber wiring, fixation, fusion and patching.
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
1.The fiber optic panel consists of three main parts: cover, bottom and tray. Both the bottom and the tray can be pulled out by two guide rails.
2.Separate spaces for fiber optic cable storage and fiber fusion: fiber optic cable comes in from the rear of the fiber optic panel, and then stores at the reverse side of the tray. The fiber optic cable goes up into the splice tray for splicing with pigtails at the front side of the tray.
3.Special cable fixation device for easy cable storage at the reverse side of the tray.
4.Patchcord could be led out from the left side or the right side of the fiber optic panel. The curved piece can protect the patchcord fiber from bending sharply.
