Functions

F2H-ODU-P11 Series ODF is used as terminal equipment of fiber optic cable for optical fiber wiring, fixation, fusion and patching.







F2H-ODU-P11 Series ODF

DATASHEET

F2H-ODU-P11 Series ODF

SOFTWARE

F2H-ODU-P11 Series ODF

MANUAL

F2H-ODU-P11 Series ODF

CERTIFICATE

Features

F2H-ODU-P11 Series ODF

1.Changeable adapter panel for SC, FC, LC, etc.

2.Cable fixation by cable ties on the left and right sides and right back of ODF.

3.Excellent fiber bending radius mechanism to ensure minimum bending radius.

4.Removable cover.

5.Sliding ODF and sliding tray fixed by magnet.

6.Adjustable mounting depth.

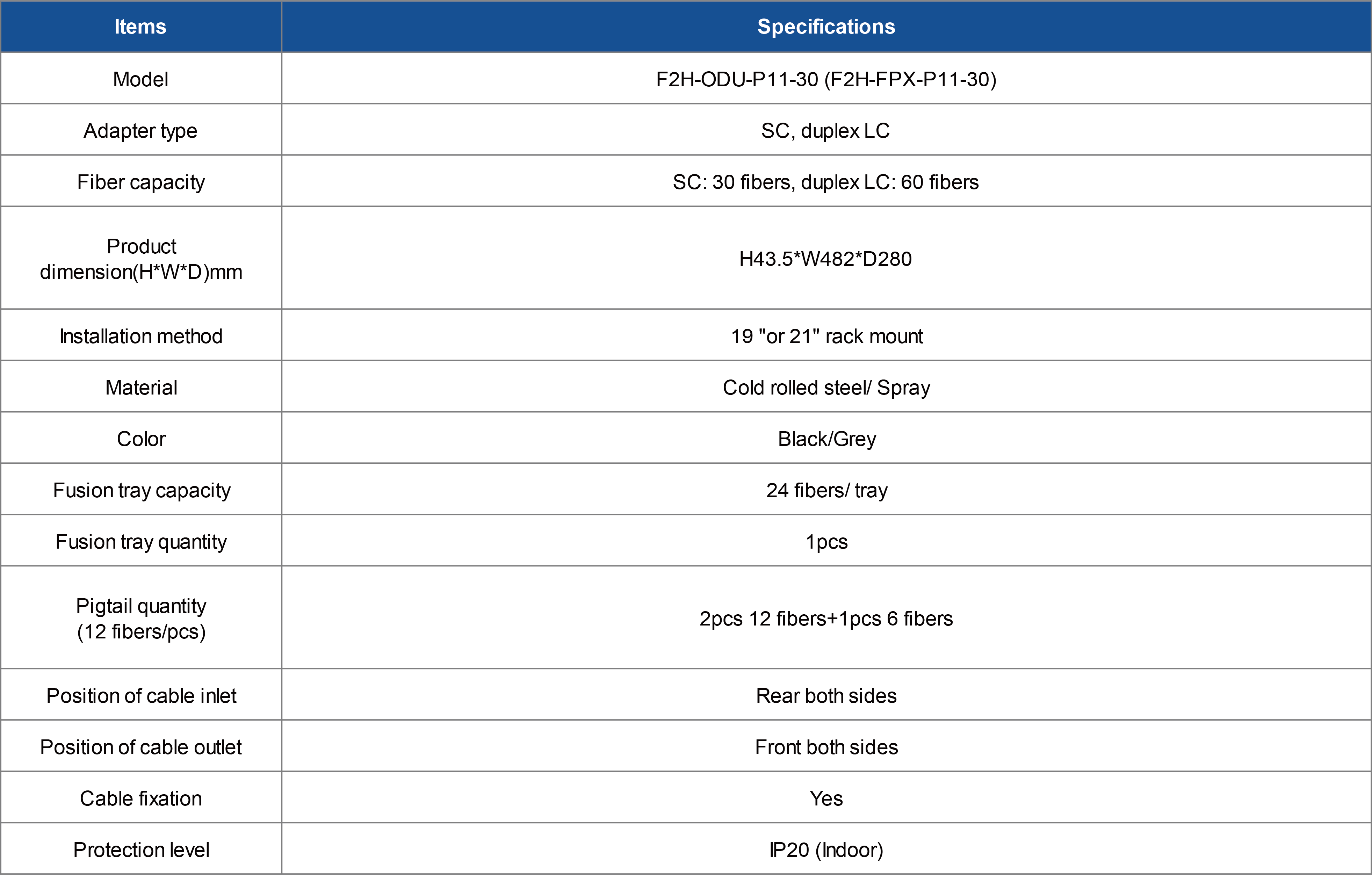

Parameters

P11 Series ODF_画板 1.png

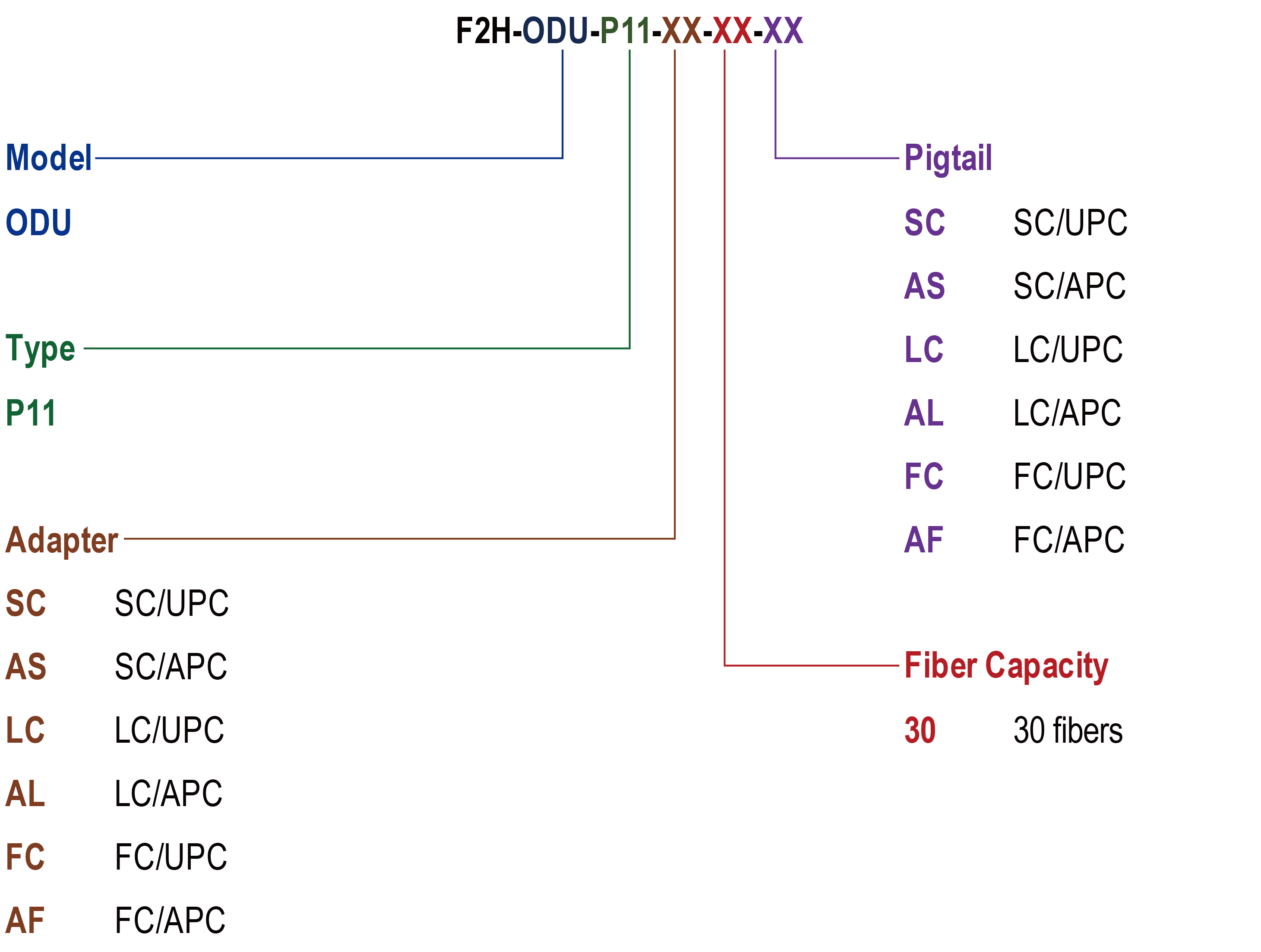

Order information
