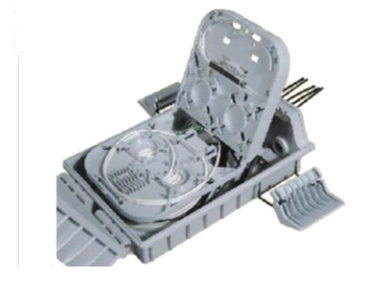

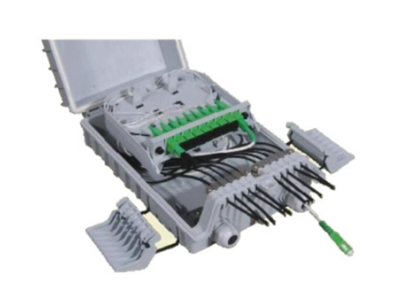

F2H-FSB-8-D Fiber Splitter Box-8 Cores
Grandway’s Fiber Splitter Box provides a high density wall mounted or pole mounted solution for next generation networks, which aims to provide and manage fiber splitters in a limited space. It is designed for FTTH (Fiber to the Home) or FTTB (Fiber to the Building) with protective housing for all the passive fiber equipment installed inside.
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
1. Water-proof design with IP65 Protection level
2. Integrated with splice cassette and cable management system
3. 1*8 micro type Splitter can be installed
4. 2 round cable ports for feeder cables
5. Splice holder for 12pcs of Fiber Splice Protective Sleeves
6. Different sealing ports for distribution cables for option, 2*3mm FTTH Drop Cable, 3mm armored cable or 5mm cable
