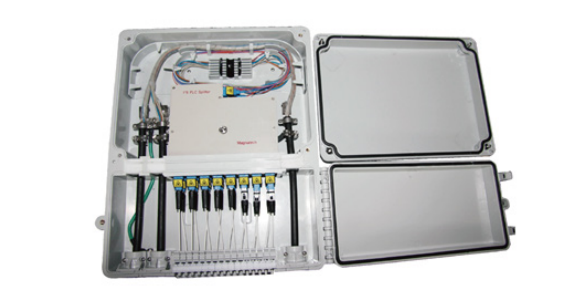

F2H-FSB-16-L Fiber Splitter Box-16 Cores
This Fiber Splitter Box provides a high density wall mounted or pole mounted solution for next generation networks, which aims to provide and manage fiber splitters in a limited space. It is designed for FTTH (Fiber to the Home) with protective housing for all the passive fiber equipment installed inside
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
1. Water-proof design with IP65 Protection level
2. Integrated with splice cassette and cable management system
3. Two 1*8 Insertion Module Splitters can be installed
4. Easy to maintain and extend the capacity
5. Suitable for the fusion splice；
6. Box is divided into two separate departments；
7. 16 ports cable entrance for FTTH Drop Cable
8. Supports Wall-mounted installation and Pole-mounted installation;
